67 66 012 Removing and installing/replacing drive unit for lumbar support on left or right front seat (comfort seat)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove both rear panels on front seat. Refer to 52 17 200 REMOVING AND INSTALLING/REPLACING UPPER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) and 52 17 202 REMOVING AND INSTALLING/REPLACING LOWER REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .

If necessary, unhook backrest cover (1) from backrest.

Cut through cable ties (2).

Unclip wiring harness at point (3) towards front.

Release screw (4) and feed out valve unit (5) towards top.

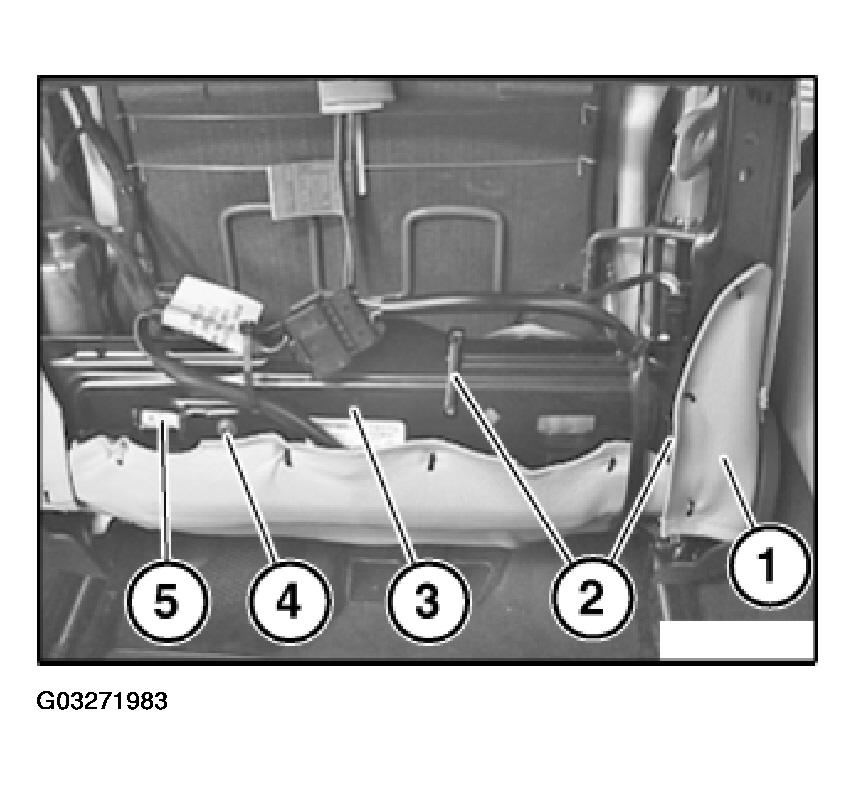

Fig 1: Identifying Wiring Harness For Drive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through cable tie (1).

Push jacket of drive unit for lumbar support (2) in direction of arrow over drive unit for lumbar support (3).

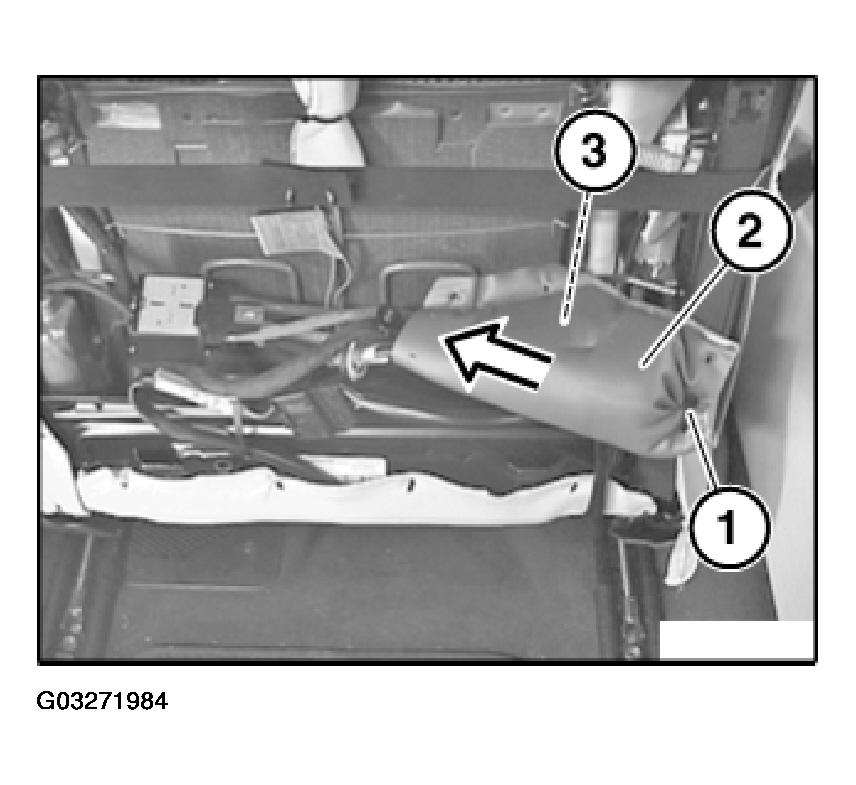

Fig 2: Locating Jacket Of Drive Unit For Lumbar Support

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Detach hose (2).

NOTE: If firmly seated, gently heat hose (2) on drive unit for lumbar support (3).

Installation:

Make sure hose (2) is laid without kinks.

Remove drive unit for lumbar support (3).

Replacement:

Pull drive unit for lumbar support (3) out of jacket (4).

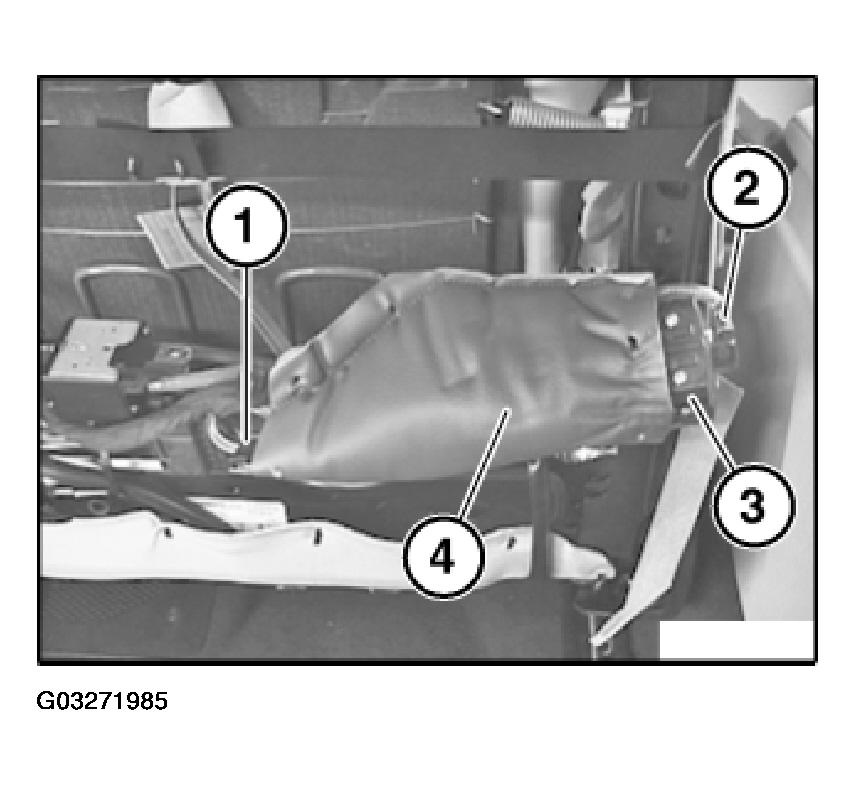

Fig 3: Removing Drive Unit For Lumbar Support

Courtesy of BMW OF NORTH AMERICA, INC.
