67 31 570 Removing and installing/replacing drive unit for head restraint height adjustment on left or right front seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC) .

Pull backrest cover (1) in direction of arrow over metal lugs (2) and detach.

If necessary, detach backrest cover on both sides from backrest frame.

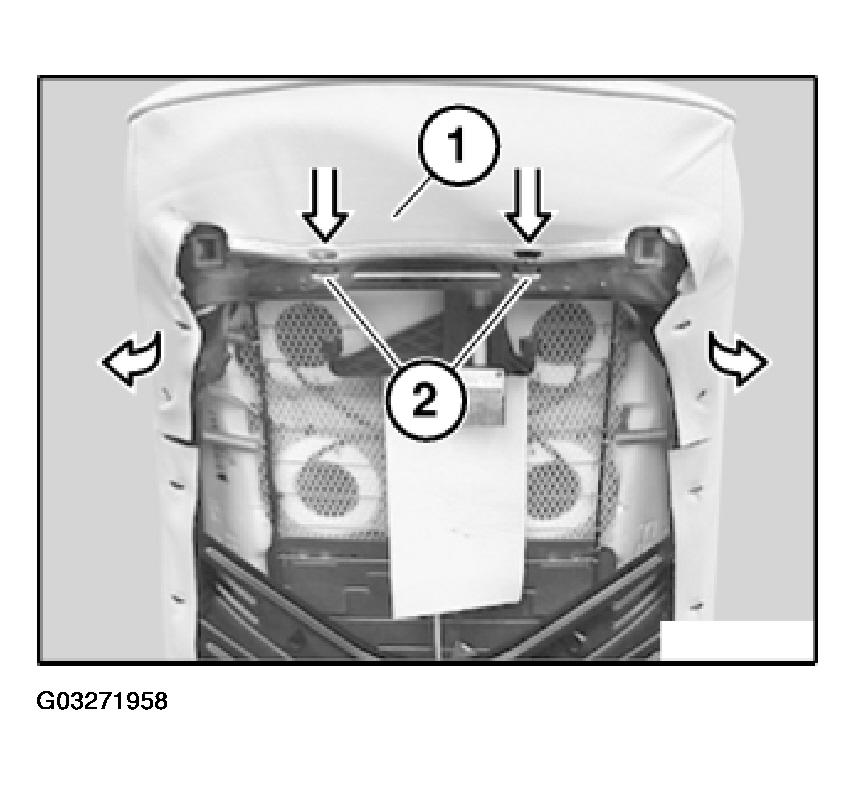

Fig 1: Locating Lugs For Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Loosen screws (2).

Feed out drive unit for head restraint height adjustment in direction of arrow and remove.

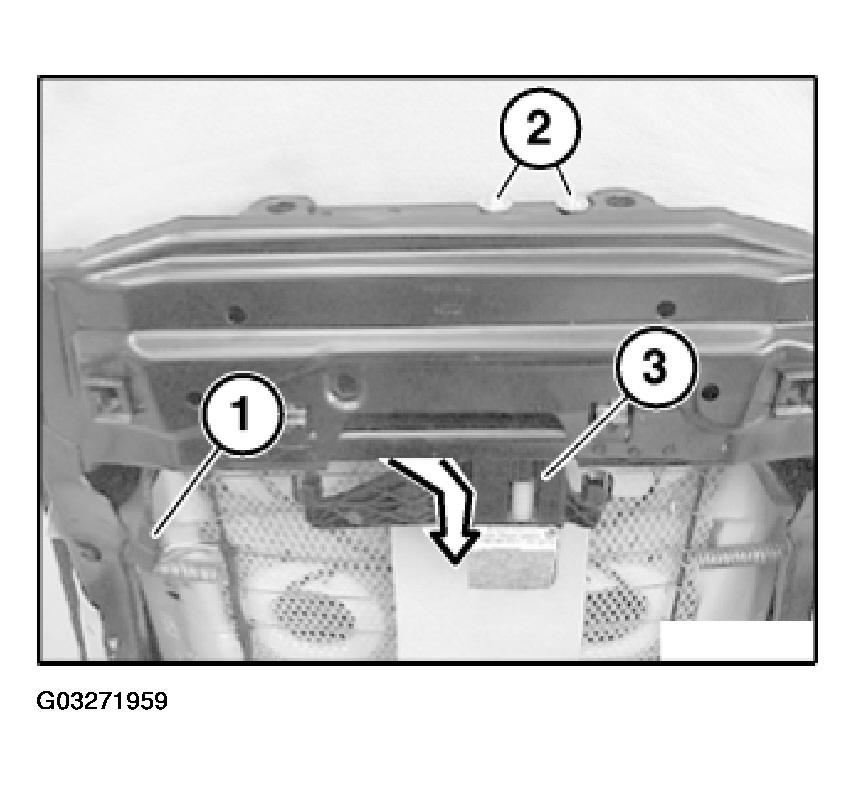

Fig 2: Identifying Drive Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
