67 31 520 Removing and installing/replacing drive unit for seat height adjustment

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) . and 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
Remove outer cover on front seat. Refer to 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT (BASIC/ELECTRIC) .

Disconnect plug connection (1).

Loosen screws (2).

Feed out drive unit for seat height adjustment (3) and remove.

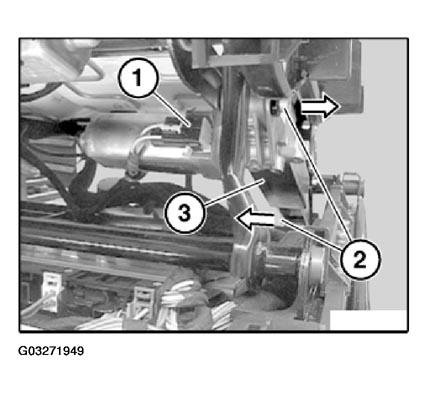

Fig 1: Locating Drive Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Comfort Seat Only:

Replacement:

Initialize drive unit for seat height adjustment. Refer to 67 31 ... NOTES ON INITIALIZING ELECTRIC SEAT SERVODRIVES .
