67 32 620 Replacing fan for thigh support on front seat (comfort seat)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove thigh support. Refer to 52 17 ... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT THIGH SUPPORT .

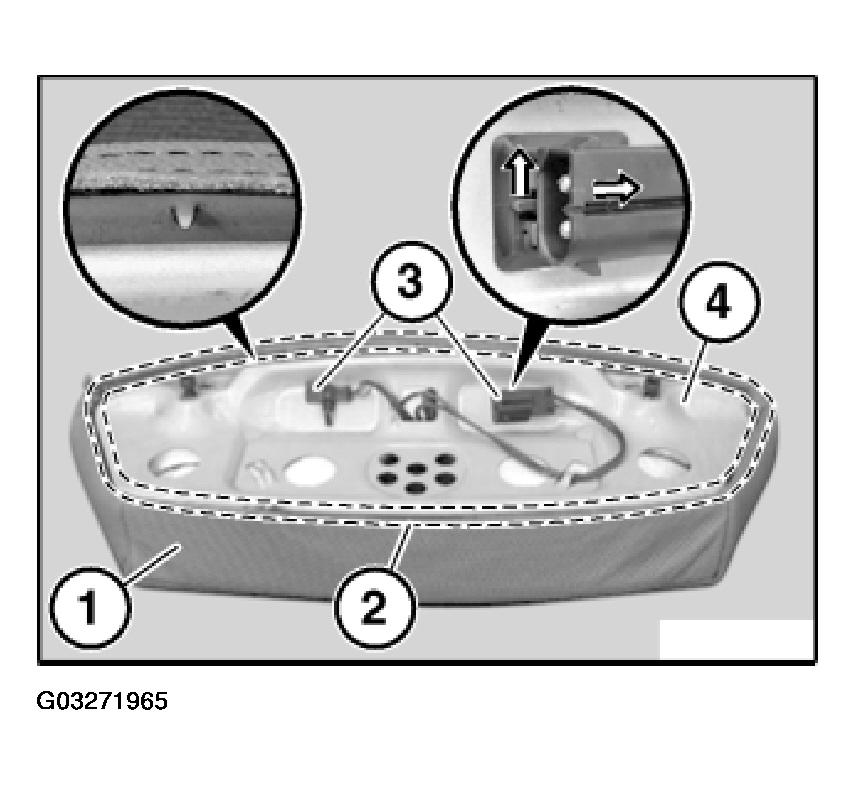

Unhook seat cover (1) in area (2).
Feed out plug housing (3) through opening in trim (4).
Remove trim (4).

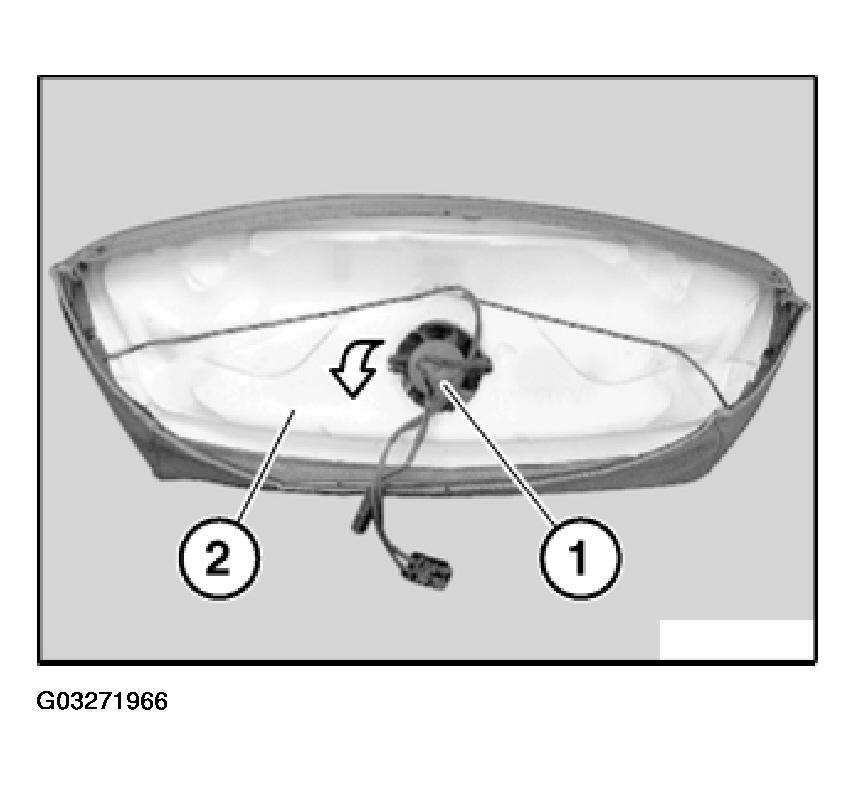

Feed fan (1) in direction of arrow out of thigh support cushion section (2) and remove.
