On replacement, assemble new part with gaiter
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

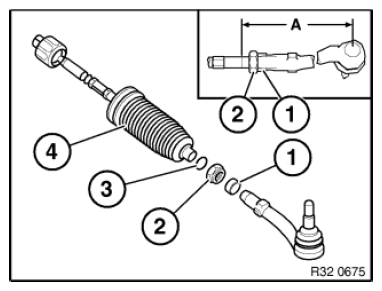

- Determine dimension (A) on used part to simplify following adjustment of front axle
- Slacken clamping nut (2)
- Screw off track rod end; if necessary, grip track rod with open-end spanner
- Remove clamping ring (1) and screw off clamping nut (2)
- Slide gaiter (4) and ear clamp and band clamp (3) onto track rod
- Slide clamping nut (2) and clamping ring (1) onto track rod
- Screw track rod end onto track rod to dimension (A)
- Tighten down clamping nut (2)
Tightening torque 32 21 2AZ .
