51-0000 Gauge

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0496710 510000 Gauge Minimum set: Mechanical tools MW

NOTE: For measuring of retraction depth of window glass (replaces special tool 51 3 080 as of 10/2009). Replaced by 83 30 2 304 553 as of 07/2012, see SI 01 14 12 (828). [Released]

Storage Location: B27

SI number: 01 22 09 (587)

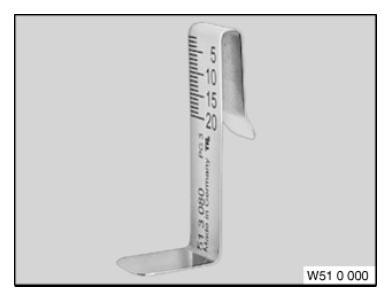

Fig 1: Identifying Gauge (0496710)

Courtesy of BMW OF NORTH AMERICA, INC.
