65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear mid-range speaker. Refer to 65 13 188 REMOVING AND INSTALLING/REPLACING REAR MID-RANGE SPEAKER (IN REAR SHELF) .

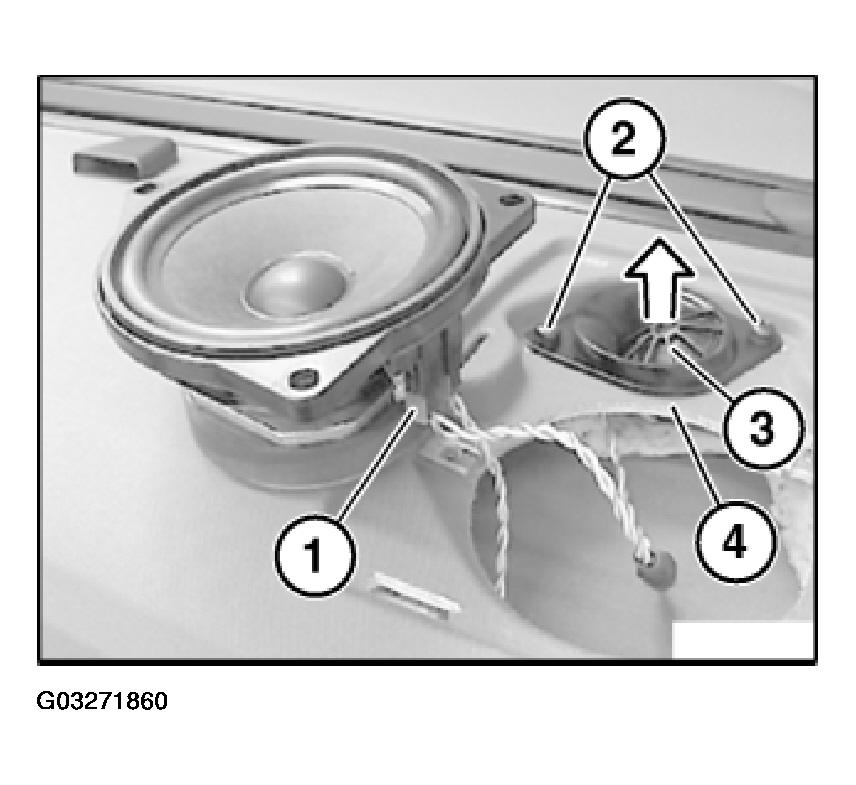

Disconnect plug connection (1).
Release screws (2).
Remove rear treble speaker (3) from rear shelf (4).
