33 41 151 Replacing left or right wheel bearing on rear axle shaft

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage multipole impulse ring.

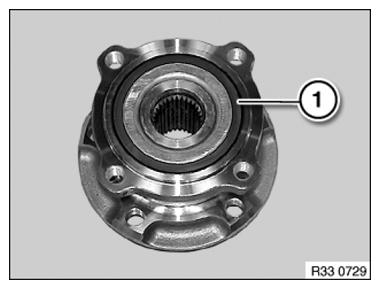

Fig 1: Identifying Multipole Impulse Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Remove DRIVE FLANGE FOR REAR AXLE SHAFT .

Release screws.

Remove wheel bearing.

Installation:

Stick in screws again / replace.

Tightening torque 33 41 2AZ .

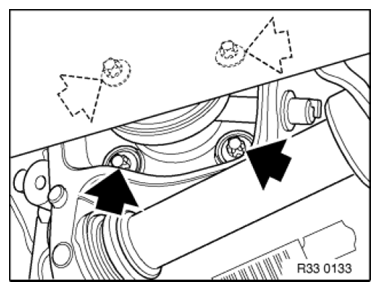

Fig 2: Locating Rear Axle Shaft Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep contact surface (2) of wheel bearing/wheel carrier clean and free from oil and grease.

Except when replacing: Recondition tapped holes (1).

Install new wheel bearing.

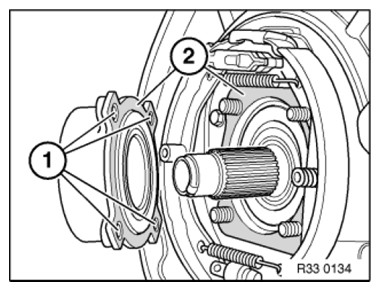

Fig 3: Identifying Wheel Bearing Contact Surface And Tapped Holes

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Adjusting PARKING BRAKE .
