65 50 170 Replacing the cover for the Central Information Display (CID) (as of 10/2009)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 460

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work

Remove CENTRAL INFORMATION DISPLAY .

Release screws (1).

Tightening torque: 66 50 2AZ

NOTE: To tighten screws, use special tool 00 9 460 .

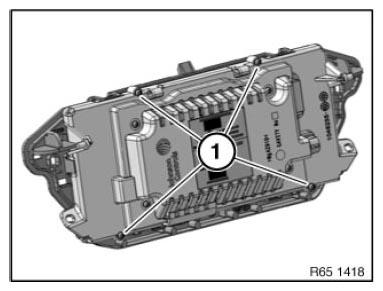

Fig 1: Identifying Central Information Display Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!

Carefully unlock latch mechanisms (1) with a suitable tool. Remove cover (2) from Central Information Display (3).

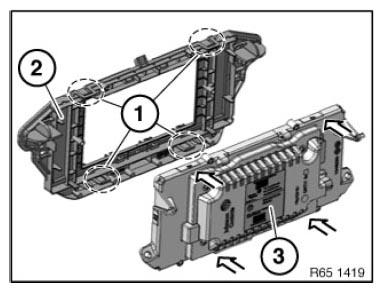

Fig 2: Removing Cover From Central Information Display

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before/after assembly, cover is bolted to the Central Information Display, correct installation position must first be checked!

Installation note:

Before connecting the screw connection, check whether latch mechanisms marked with an arrow are correctly seated.

Fig 3: Locating Screw Connection Latch Mechanism Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before connecting the screw connection, check all-round rim at the places marked with an arrow.

Fig 4: Checking All-Round Rim Places Marks

Courtesy of BMW OF NORTH AMERICA, INC.
