Removing Roof Outer Skin

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open welded connections in areas (1).

Open brazed connections in areas (2).

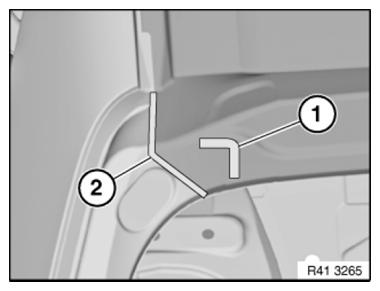

Fig 1: Identifying Welded And Brazed Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

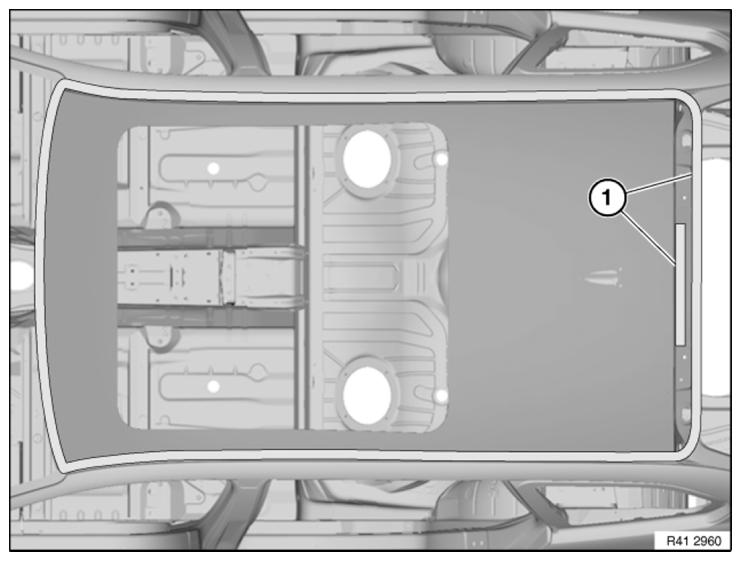

Fig 2: Identifying Spot-Welded Adhesive Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open spot-welded adhesive joints in areas (1).

Fig 3: Identifying Sealant Bonded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown without roof outer skin for purposes of clarity.
Detach bonded connection (1) (sealant) and remove roof outer skin.
