Removing Luggage Compartment Floor

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Most of operation is described on the left side. Right side identical.

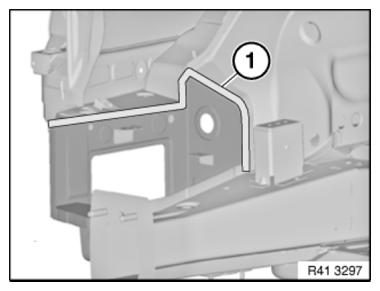

Open welded connections in area (1).

Fig 1: Identifying Weld Connections Area

G08528549

Courtesy of BMW OF NORTH AMERICA, INC.

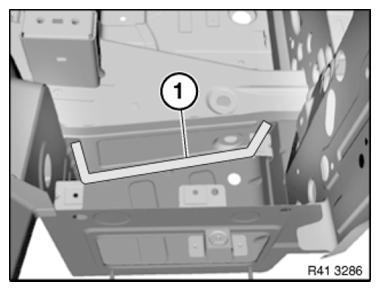

Open welded connections in area (1).

NOTE: Side wall hidden for purposes of clarity.

Fig 2: Identifying Weld Connections Area

G08528550

Courtesy of BMW OF NORTH AMERICA, INC.

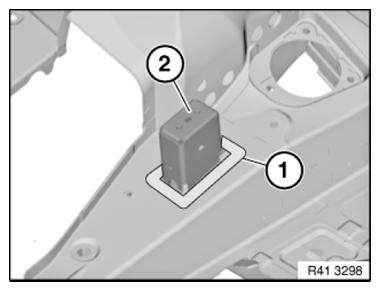

Open welded connections in area (1).

Remove middle lashing rail mounting (2).

Fig 3: Identifying Weld Connections Area And Middle Lashing Rail Mounting

G08528551

Courtesy of BMW OF NORTH AMERICA, INC.

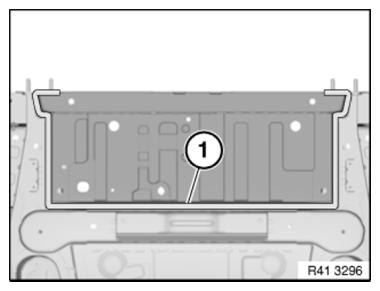

View from below:

Open welded connections in area (1).

Fig 4: Identifying Weld Connections Area

G08528552

Courtesy of BMW OF NORTH AMERICA, INC.

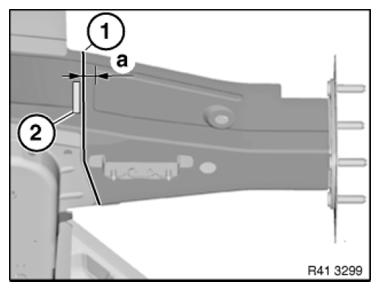

Mark severance cut (1) in accordance with dimension a and cut.

Dimension a = 10 mm

Open welded connections in area (2).

Fig 5: Identifying Severance Cutting Dimension

G08528553

Courtesy of BMW OF NORTH AMERICA, INC.

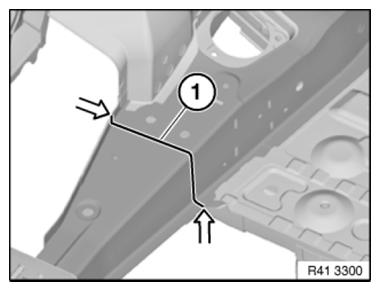

Mark severance cut (1) in accordance with previous severance cut and cut.

Fig 6: Identifying Severance Cutting Dimension With Previous Severance Cut

G08528554

Courtesy of BMW OF NORTH AMERICA, INC.
