52 30 405 Removing and installing/replacing seat cover for left or right rear seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050 .

Necessary preliminary tasks

Remove FRONT TRIM .

Open tension cable (1).

Disengage welt (2) from seat frame.

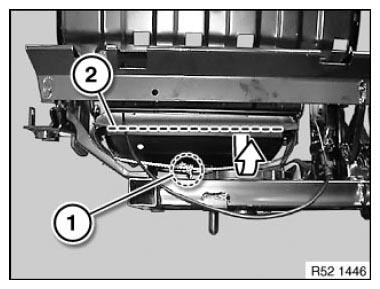

Fig 1: Disengaging Welt From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage tensioning cable over wire eyelets.

Remove seat cover with padding from seat frame.

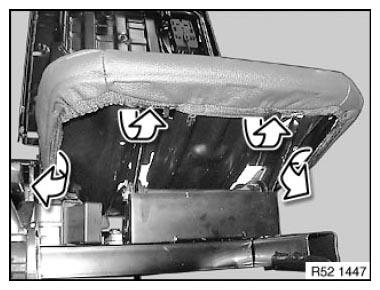

Fig 2: Removing Seat Cover With Padding From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers in marked area.

Remove seat cover from padding.

NOTE: Remove all remnants of retainers from seat cover and support.

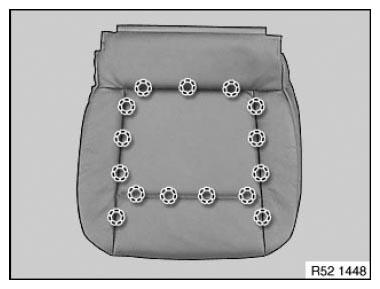

Fig 3: Identifying Seat Cover And Support Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in seat cover
Seat cover

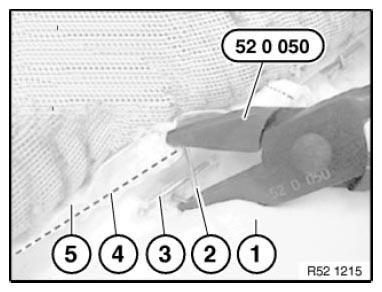

Fig 4: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing seat cover:

Pull trim wires out of seat cover.

Cut new seat cover to size and insert trim wires.

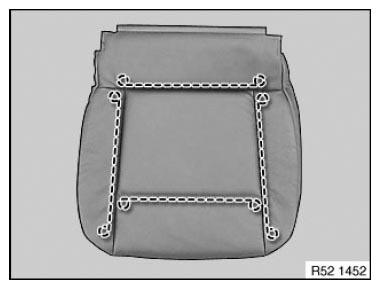

Fig 5: Identifying Seat Cover Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.
