22 32 001 Replacing rubber mount for transmission mounting (ATC 450)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work

Remove CROSS MEMBER for transmission mounting.

Attach special tool 22 1 051 with screw (1) on the housing.

Pull out rubber mount with special tools 22 1 052 / 33 4 465 and 33 4 466 .

Fig 1: Pulling Out Transmission Housing Rubber Mountings Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note

Observe installation position of rubber mount.

Arrow on rubber mount must point to arrow on housing.

Coat housing bore and rubber mount with Circolight.

Fig 2: Identifying Rubber Mounting Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 22 1 102 with bolt into recesses of rubber mount.

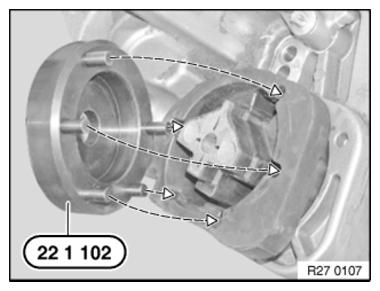

Fig 3: Inserting Special Tool (22 1 102) With Bolt Into Recesses Of Rubber Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount with special tools 22 1 102 / 22 1 053 / 33 4 465 and 33 4 466 .

Fig 4: Drawing In Rubber Mounting Using Special Tools (22 1 102, 22 1 053, 33 4 465 And 33 4 466)

Courtesy of BMW OF NORTH AMERICA, INC.
