54 13 070 Removing and installing/replacing both floating headlinings for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove glass slide/tilt sunroof lid . See 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE/TILT SUNROOF COVER or 54 10 170 REMOVING AND INSTALLING FRONT GLASS SLIDE/TILT SUNROOF COVER at front and rear.

NOTE: Front and rear floating headlinings can be removed separately from each other.
Make sure that grease on the rails does not come into contact with the floating headlining.

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused.
Screw connection must be completed within 20 minutes (start of curing).
Microencapsulated screws must not be retightened.
Clean thread of nut beforehand in event of repeated use.

Front floating headlining:

Open floating headlining approx. halfway.

Front rain channel must be situated between first and second screws.

Release screws (1).

Tightening torque 54 12 04AZ .

Remove star washers.

Installation note:

Replace microencapsulated screws.

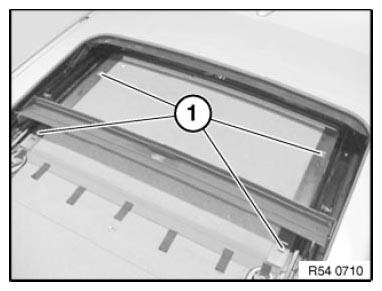

Fig 1: Pulling Out Floating Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure star washers are correctly positioned.

Pull out floating headlining (2) in direction of arrow.

If necessary, press wind deflector downwards.

Installation note:

Carefully raise floating headlining mechanism.

Rear floating headlining:

Close floating headlining.

Release screws (1).

Tightening torque 54 12 05AZ .

Installation note:

Replace microencapsulated screws.

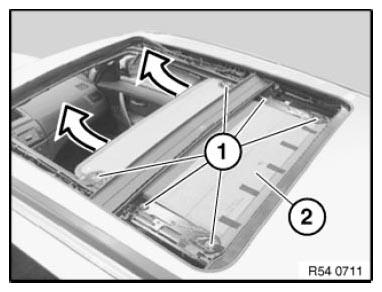

Fig 2: Identifying Floating Headlining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Number of tension springs is dependent on the version:

Up to 01/2010 tension springs on only one side (left).
From 01/2010 tension springs on both sides (left and right).

Remove tension springs and washers.

Slide floating headlining (4) in direction of arrow (1) between outer body skin and headlining.

Slide floating headlining (4) up to end of control rail (3).

Raise floating headlining (4) and remove over control rail (3) in direction of arrow (2).

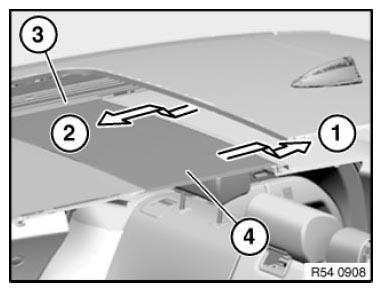

Fig 3: Sliding Floating Headlining Between Outer Body Skin And Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Slider set can fall sideways out of guide rail.
Risk of damage to drag arm.
Secure slider set or if necessary REMOVE .

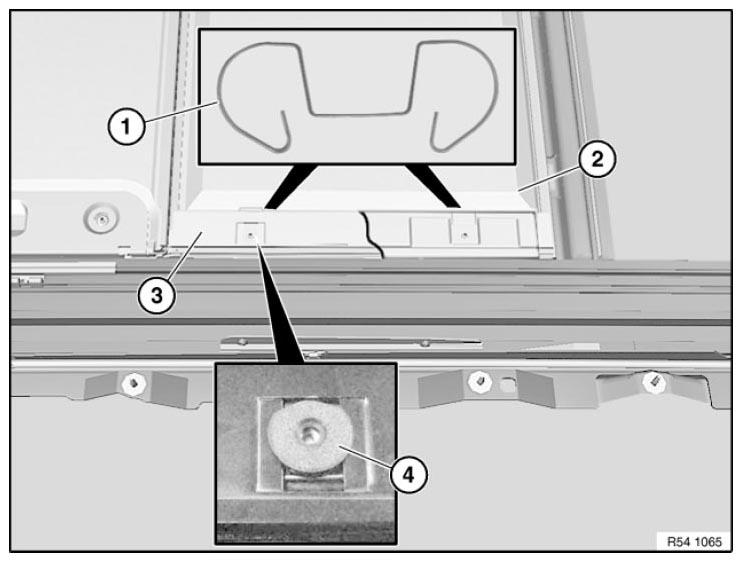

Fig 4: Identifying Tensioning Springs, Rear Floating Headlining And Washer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tensioning springs (1) must rest correctly in recess of rear floating headlining (2).

Left side: make sure washer (4) is correctly positioned with anti-twist lock.

Right side: insert white plastic washers.

Replace microencapsulated screws.

Tightening torque 54 12 05AZ .

IMPORTANT: A gap of light between the floating headlinings is not permitted.

Perform function check:

Floating headlining must be able to move in control rail in X-direction.
Floating headlining is positioned on right and can be pressed towards left under spring tension.
Floating headlining springs back towards right into initial position.
