Necessary components

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

1	Hydraulic unit
E3	Washer M24
F3	Spindle M24 (length 270 mm)
C1	Holding sleeve
K2	Screws M14 x 1.5
B1	Adapter

Secure output shaft against falling out.
Press out output shaft with hydraulic unit.

IMPORTANT: Do not damage inner race (1) of wheel bearing.

Installation note:

Keep contact surface of swivel bearing and wheel bearing clean and free from oil and grease.

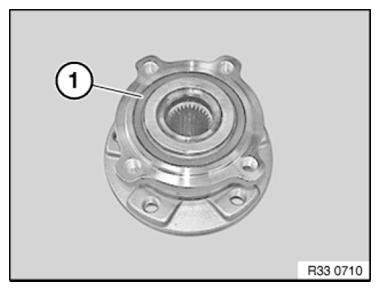

Fig 1: Identifying Inner Race Of Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

The following work steps describe drawing in the output shaft / wheel bearing:

Fig 2: Fitting Output Shaft In Drive Flange

Courtesy of BMW OF NORTH AMERICA, INC.

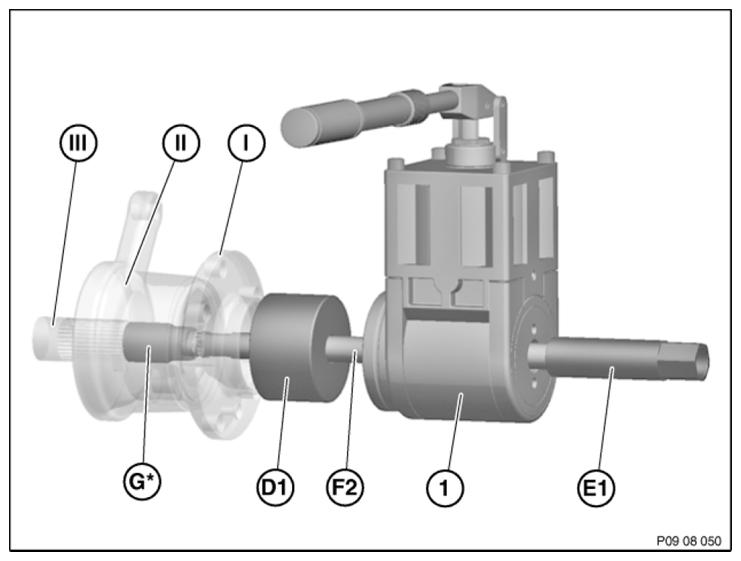

The following tools are required to fit the output shaft in the drive flange, see graphic for arrangement:
