Replacing gaiter of wheel-side joint

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

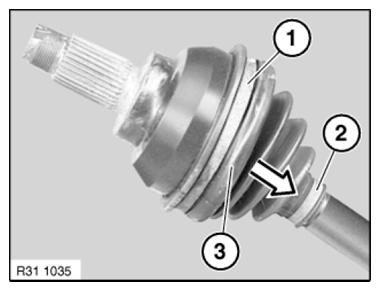

Release LOW PROFILE CLIP (1) and clip (2).

Pull back rubber gaiter (3).

Installation note:

Feed gaiter (3) into groove of joint.

Fig 1: Releasing Low Profile Clip And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

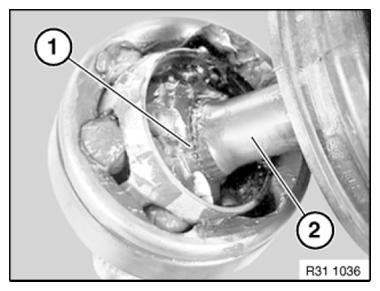

Press off joint (1) via contact pressure of circlip on shaft (2).

Installation note:

Push on joint until circlip can be heard to snap into place.

Fig 2: Identifying Off Joint And Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

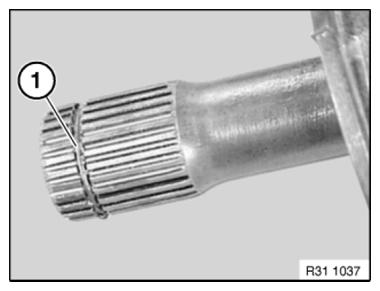

Lift out circlip (1).

Installation note:

Replace circlip (1).

Fig 3: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

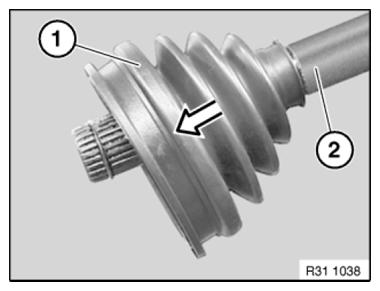

Pull off gaiter (1) over shaft (2).

Carefully clean all components with a cloth.

NOTE: Re-grease constant velocity joint with the grease from the repair kit.

Fig 4: Pulling Off Gaiter Over Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
