Install radial shaft seal

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The installation protective ring (1) serves to protect the sealing lips of the radial shaft seal (2) when the output shaft is being installed.

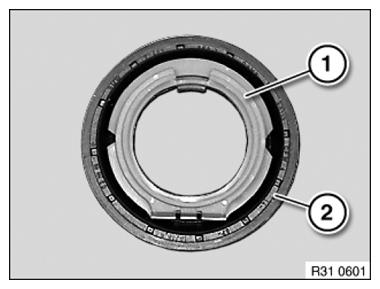

Fig 1: Identifying Radial Shaft Seal And Installation Protective Ring
G08527713Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Installation protective ring must not slip out of shaft seal!

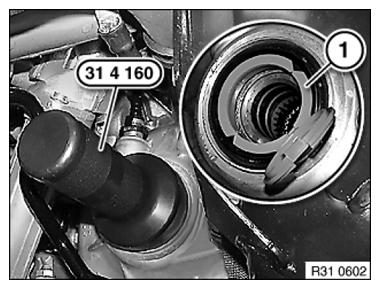

Fig 2: Driving Shaft Seal With Special Tool (31 4 160)
G08527714Courtesy of BMW OF NORTH AMERICA, INC.

Drive in shaft seal with special tool 31 4 160 to limit position.

Carefully remove special tool 31 4 160 .

Open installation protective ring (1).

Check FRONT DIFFERENTIAL OIL LEVEL , correct if necessary
