Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove bearing block from oil sump.

Installation:

Replace O-RING .

Tightening torque 31 60 1AZ .

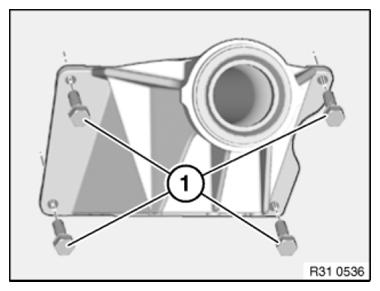

Fig 1: Identifying Oil Sump Bearing Block Screws
G08527715Courtesy of BMW OF NORTH AMERICA, INC.
