17 21 500 Flushing transmission oil cooler with lines (automatic transmission) (GA6HP19Z, GAHP26Z, GA6HP32Z)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the work steps listed when:
Installing a new or replacement transmission.

Procedure

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Hold and direct open end of drain line into a suitable drip tray.

Using oil collection unit, flush approx. 1 liter of transmission fluid through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid.

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bar (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

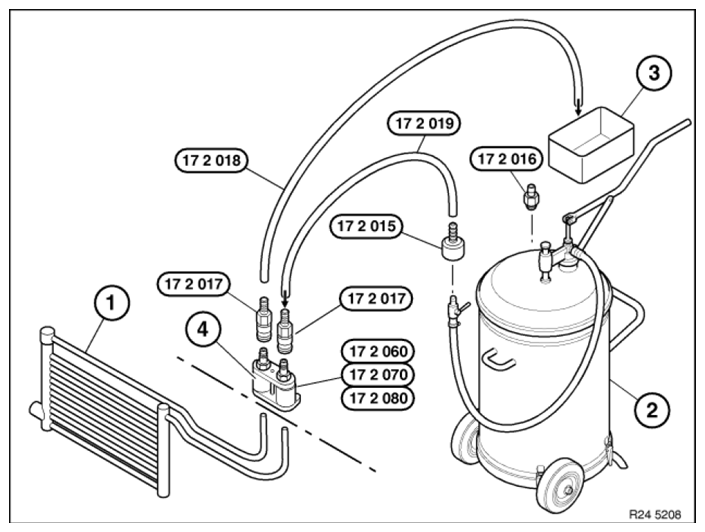

Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z

Fig 2: Arrangement Of Flushing Apparatus For Transmissions (GA6HP19Z, GA6HP26Z, GA6HP32Z)

Courtesy of BMW OF NORTH AMERICA, INC.

Transmission-oil cooler with lines
Oil collection unit
17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or

17 2 016 Connection for oil collection unit (2), manufacturer: Horn

17 2 017 Quick-release coupling (2 pieces)

17 2 019 Hose to oil collection unit (2)
Oil drip tray
17 2 018 Hose to oil drip tray (3)
Adapter with clamping bar
17 2 060 Adapter with clamping bar for aluminum lines and steel lines with aluminum connection (line diameter 12 mm) GA6HP19Z

17 2 070 Adapter with clamping bar (line diameter 15 mm) GA6HP26Z, GA6HP32Z, TCT for N54 engine

17 2 080 Adapter with clamping bar for fuel lines GA6HP26Z
