51 43 259 Removing and installing/replacing trim for rear roof pillar (D-pillar), left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Release trim (1) inwards from clips (2) and remove.

Complete removal only with version with 3rd seat row:

Release SCREW FOR SEAT BELT (3) .

Feed seat belt (3) out of trim (1).

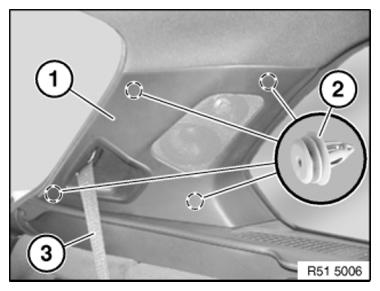

Fig 1: Identifying Seat Belt, Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1 and 2).

Make sure all clips are installed in correct position.

Blue clip
White clip

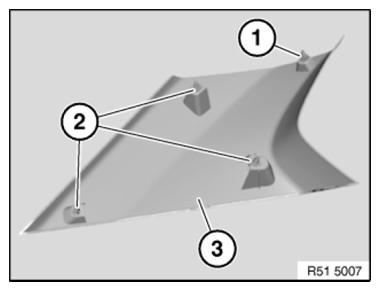

Fig 2: Identifying Rear Roof Pillar Trim Clips
Courtesy of BMW OF NORTH AMERICA, INC.
