51 42 017 Removing and installing/replacing cover on door handle, rear left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317

Important!

Risk of damage!

Before using special tools, check them for damage and if necessary eliminate sharp edges.

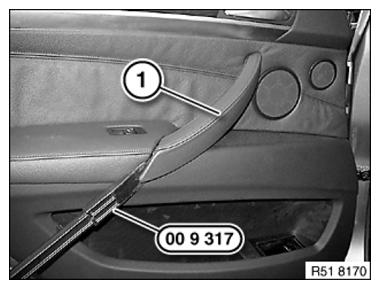

Lift out cover (1) with special tool 00 9 317 .

Fig 1: Removing Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

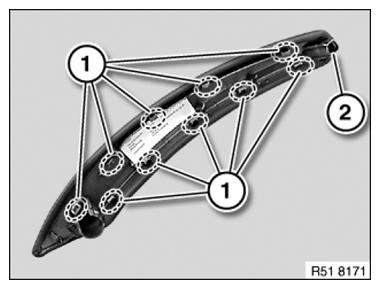

Installation note:

Catches (1) of cover (2) must not be damaged.

Fig 2: Ensure Catches Of Cover Are Not Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
