51 22 360 Replacing gasket for door seam/roof frame on left or right rear door

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

00 9 317

Important!

The Instructions on fitting window guide seals serve as the basis for this repair instruction and must be observed without fail.

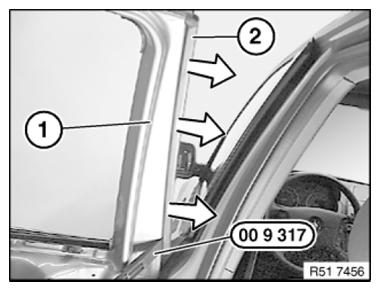

Lever out seal (1) on door window frame at front (2) with special tool 00 9 317 .

Fig 1: Removing Front Door Window Frame Seal Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

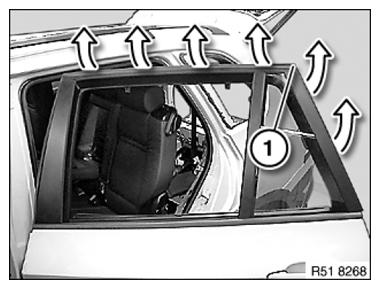

Starting at rear, pull off gasket (1) towards front.

Installation note:

Moisten gasket prior to fitting with approved lubricant.

Fig 2: Pulling Off Door Seal

Courtesy of BMW OF NORTH AMERICA, INC.
