51 22 300 Removing and installing/replacing outer weather strip on rear door on left or right
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
Important!
Observe procedure for using special tool 00 9 324 .
Important!

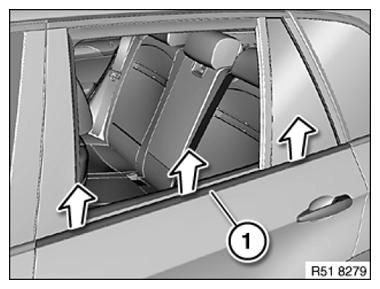

If reusing the existing weather strip (1), make sure it is not bent.
Lever out weather strip (1) with special tool 00 9 324 (startng at B-pillar).
Simultaneously lift out weather strip (1) with special tool 00 9 317 in the vicinity of the B-pillar.
