51 12 050 Removing and installing/replacing carrier for rear bumper trim
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR BUMPER TRIM .

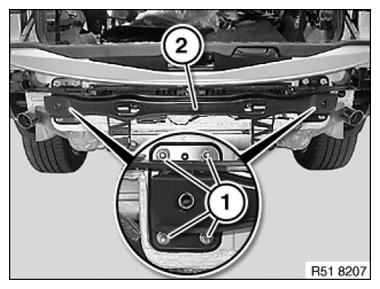

Release nuts (1) on left/right.
Remove carrier (2).
Tightening torque 51 12 1AZ .
