51 16 405 Removing and installing/replacing roller sun blind on side window of left or right rear door

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL

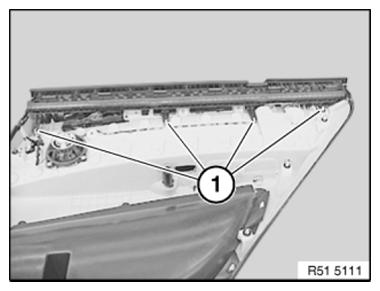

Release 4 bolts (1).

E71, E72:

only 3 screws present.

Fig 1: Identifying Rear Door Trim Panel Mounting Bolts
Courtesy of BMW OF NORTH AMERICA, INC.

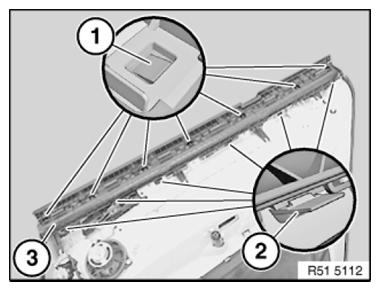

Release catches (1 and 2) and pull off roller sun blind (3) towards bottom.

E71, E72:

only 6 catches present.
only 5 catches present.

Installation:

Catches (1 and 2) must not be damaged.

Fig 2: Identifying Roller Sun Blind And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

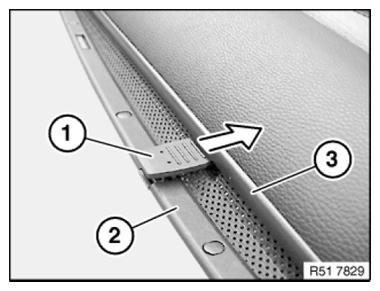

Fold up handle (1) and feed out with roller sun blind (2) through frame (3).

Fig 3: Removing Handle With Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
