Release tab washer (1) and remove pin (2).

Release pin (3).

Remove reversing lever (4).

Installation:

Replace tab washer (1) and pin (2).

Contact lug (5) for microswitch must not be damaged or missing.

Fig 1: Identifying Glovebox Lid Tab Washer, Pin, Reversing Lever And Microswitch Lug

Courtesy of BMW OF NORTH AMERICA, INC.

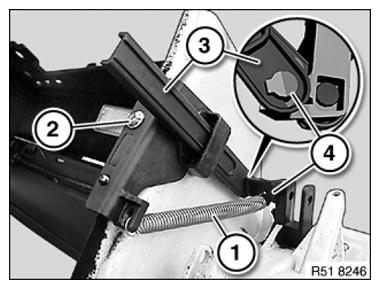

Open glovebox lid.

Disconnect spring (1).

Release screw (2).

Feed damping element (3) out of holder (4).

Fig 2: Identifying Glovebox Lid Spring, Damping Elements, Holders And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
