51 16 373 Removing and installing/replacing lock for glovebox lid on left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove GLOVE COMPARTMENT .

E70/71 up to 09/09 only

Release screws (1).

Remove lock (2).

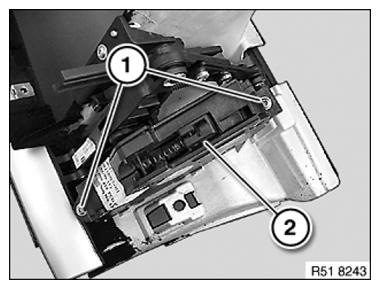

Fig 1: Identifying Glovebox Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Grommets (1) on glovebox (2) must not be damaged.

Lock must be correctly inserted into grommets (1).

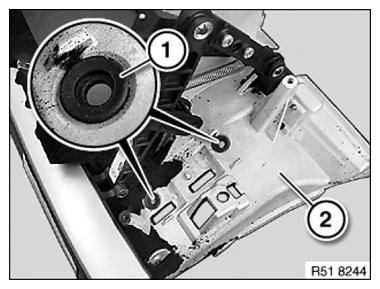

Fig 2: Identifying Glovebox And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

from 09/09

Open glovebox lid.

For this purpose, move locking rod (1) in direction of arrow.

Fig 3: Pushing Locking Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) from drive unit for locking rod (1).

Tightening torque 51 16 3AZ .

Remove drive unit for locking rod (1).

Installation:

Carry out manual function check for unlocking and locking of glove box cover.

When locked, the operating tab (4) must correctly operate the microswitch (2).

Fig 4: Identifying Locking Rod, Microswitch, Operating Tab And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
