51 16 372 Removing and installing/replacing lower glovebox lid

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove GLOVE COMPARTMENT .

NOTE: Graphic is only an example (graphic used shows glove box up to 09/09)

Close glovebox lid.

Release tab washer (1) and remove pin (2).

Installation:

Replace tab washer (1) and pin (2).

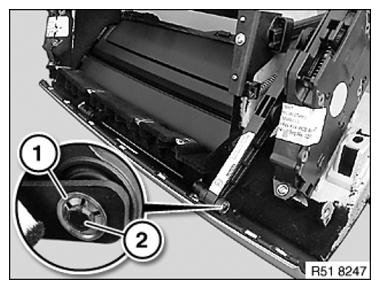

Fig 1: Identifying Glovebox Lid Tab Washer And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out shaft (1) in direction of arrow until knurled area (2) is exposed.

Pull out shaft (1) completely and remove glovebox lid.

Installation:

Check that shaft (1) is securely seated.

If necessary, fit flap fastening set.

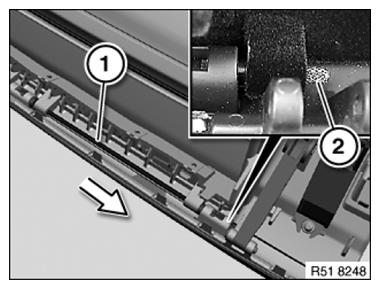

Fig 2: Driving Out Glovebox Lid Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty bushings (1).

Markings (2) on bushing (1) and glovebox lid (3) must line up.

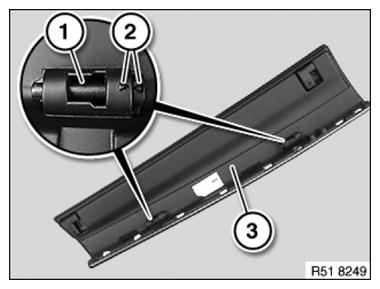

Fig 3: Identifying Glovebox Lid And Bushing With Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify cover of lower end cover (1) by releasing from screws (2).

Check to see whether adhesive tape (4) of lower glove box end cover (5) can be reused, replace if necessary.

Fig 4: Identifying Lower Glove Box End Cover, Adhesive Tape, Lower End Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
