Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Lever out cover (1) and release screw underneath.

Unfasten screws (2 and 3).

Unclip light (4) and disconnect plug connection.

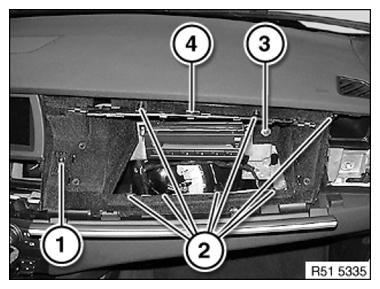

Fig 1: Identifying Glove Box Cover, Light And Mounting Screws
G08528910Courtesy of BMW OF NORTH AMERICA, INC.
