E70/71 up to 09/09 only

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Disengage Bowden cable (1) on left and right at lock (2).

Installation:

Carry out function check on emergency release mechanism.

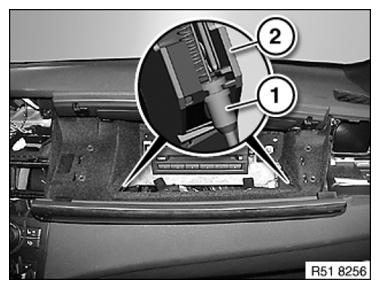

Fig 1: Identifying Bowden Cable And Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach Bowden cable head (1) on left and right before inserting glove box, then insert glove box.

Feed in spacer (2).

Fig 1: Identifying Bowden Cable Head And Spacer

Courtesy of BMW OF NORTH AMERICA, INC.
