51 16 163 Removing and installing/replacing rear center console trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove SIDE CARPET FROM STORAGE COMPARTMENT on left and right.

NOTE: Driver's seat removed for purposes of clarity.

Release left and right screws (1).

Lift retaining tabs (2) on left and right over catches and remove rear center console trim (3) from center console.

Installation:

Make sure wiring harnesses are correctly routed.

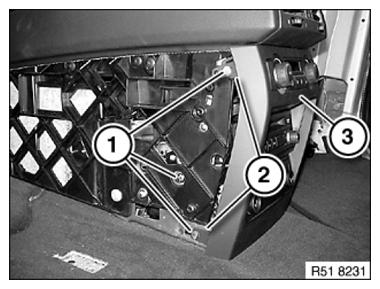

Fig 1: Identifying Rear Centre Console Trim, Retaining Tabs And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove rear center console trim (2).

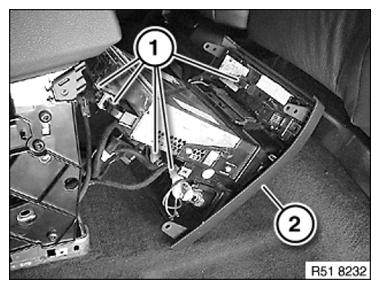

Fig 2: Identifying Rear Centre Console Trim And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove SOCKET TRIM IN CENTRE CONSOLE (REAR) .

If necessary, remove CONTROL PANEL FOR REAR-CABIN A/C SYSTEM .

If necessary, remove DVD PLAYER IN REAR CONSOLE .
