51 16 060 Removing and installing/replacing interior rearview mirror (overview)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Version with cable (X) for:
  • Automatic dim action (electro-chrome technology) for interior rearview mirror
  • Condensation sensor
  • Remote control (infrared or radio)
  • High-beam assistant
  • Garage door openers
  • Compass
  • Rain sensor

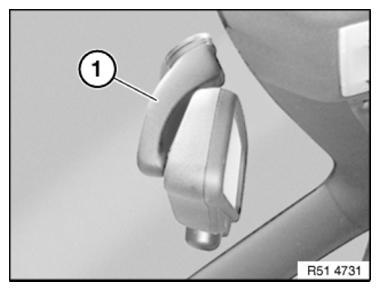

Version without cable (X) with full foot (1).

Fig 1: Identifying Interior Rearview Mirror With Foot
G08528975Courtesy of BMW OF NORTH AMERICA, INC.

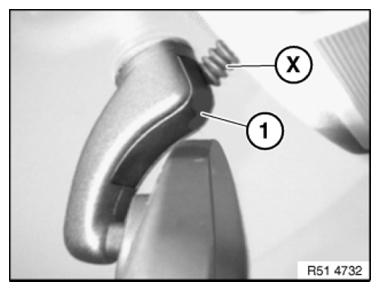

Version with cable (X) and plug trim cover (1).

Fig 2: Identifying Interior Rearview Mirror With Plug Trim Cover
G08528976Courtesy of BMW OF NORTH AMERICA, INC.

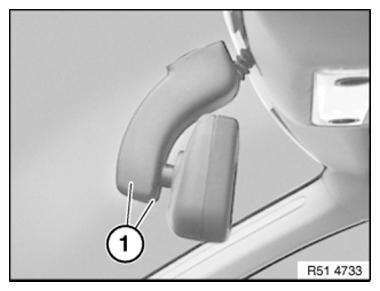

Version with mirror arm end caps (1).

Fig 3: Identifying Interior Rearview Mirror With Mirror Arm End Caps
G08528977Courtesy of BMW OF NORTH AMERICA, INC.

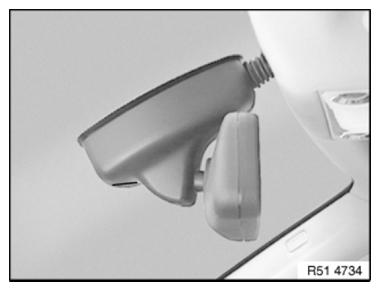

VERSION  with rain sensor.

Fig 4: Identifying Interior Rearview Mirror With Rain Sensor
G08528978Courtesy of BMW OF NORTH AMERICA, INC.

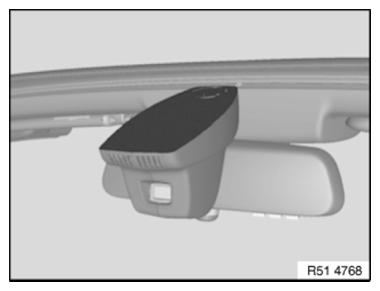

VERSION  with Autobeam.

Fig 5: Identifying Interior Rearview Mirror With Autobeam
G08528979Courtesy of BMW OF NORTH AMERICA, INC.

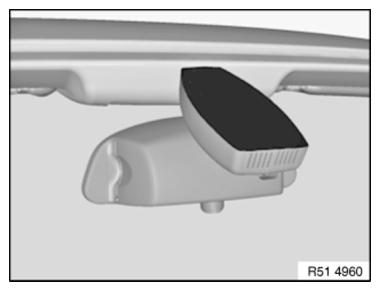

VERSION  with toll mirror for Japan.

Fig 6: Identifying Interior Rearview Mirror With Toll Mirror
G08528980Courtesy of BMW OF NORTH AMERICA, INC.
