51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove COVER ON DOOR HANDLE .

Release screw (2).

Tightening torque, 51 41 1AZ.

Partially unclip door trim panel (1) in area of rear view mirror with special tool 00 9 317 .

Partially loosen door window frame cover (3).

Press rubber window seal (4) to one side.

Fig 1: Identifying Door Trim Panel, Door Window Frame Cover, Rubber Window Seal And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure mirror against falling off.

Press rubber guide (2) to one side and release screws (3).

Tightening torque 51 16 1AZ .

Installation note:

Make sure grommet for plug connection (1) is correctly seated

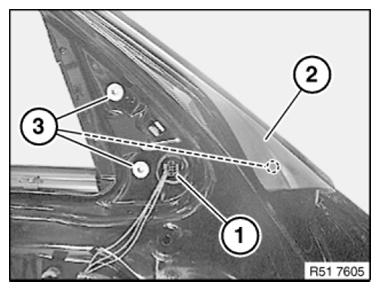

Fig 3: Identifying Plug Connection, Rubber Guide And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Due to the thread-tapping screws, the tightening torque of the new mirror is increased by 2 Nm.

Remove mirror (1) outwards.

Installation note:

Run a function check.

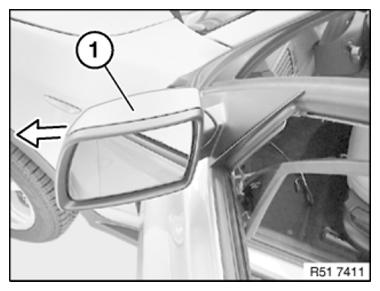

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sound insulation (1) must not be damaged.

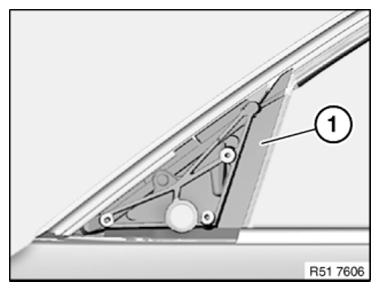

Fig 5: Identifying Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

MODIFY mirror glass.
Modify PROTECTIVE CAP ON EXTERIOR MIRROR .
