51 45 378 Removing and installing/replacing decorative strip on right fresh air grille

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

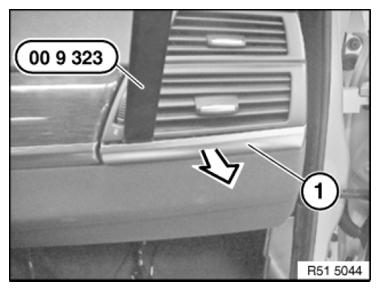

Lever out decorative strip (1) with special tool 00 9 323 in direction of arrow and remove.

Fig 1: Removing Decorative Strip Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

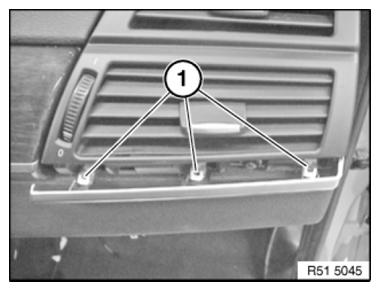

Make sure clamps (1) are correctly seated on decorative strip.

Fig 2: Identifying Decorative Strip Mounting Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
