51 36 056 Removing and installing/replacing trim strip on side window on rear left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE: Trim strip (1) must not be bent during removal.

Starting at bottom, unclip trim strip (1) 00 9 317 from lugs (2) in succession with special tool.

Installation:

Lugs (2) must not be missing or damaged.

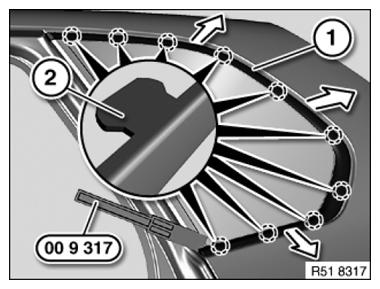

Fig 1: Removing Trim Strip From Lugs Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
