51 71 041 Removing and installing/replacing rear left or right wheel arch cover
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove REAR WHEEL
- Remove TRIM ON REAR WHEEL ARCH
NOTE:
Work shown on X5 3.0i by way of example, deviations in detail are possible in other models.

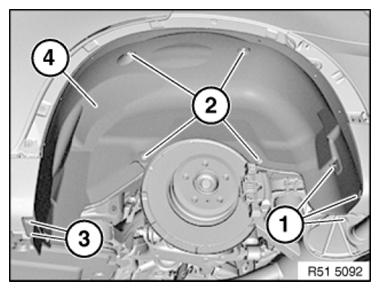

Release fastening elements (1 to 3).
Feed out wheel arch cover (4) towards bottom.
Installation:
If necessary, replace defective retaining elements.
Ensure wheel arch cover (4) is correctly seated.
