51 21 125 Removing and installing/replacing carrier for left or right outside door handle with lock cylinder

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove OUTER HANDLE .
Remove SOUND INSULATION .
If necessary, close door window glass.

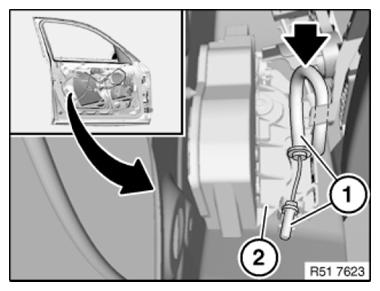

Release Bowden cable (1) from door lock (2).

Installation:

Bowden cable (1) must be correctly engaged in locators in door lock (2).

Bowden cable (1) must be laid without kinks in bend to door lock (2).

IMPORTANT: Door can not be opened if Bowden cable (1) is incorrectly laid.

Fig 1: Locating Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

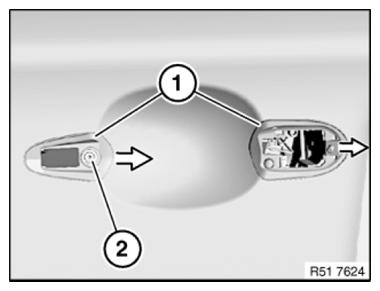

Remove seals (1) in direction of arrow.

Release screw (2).

Fig 2: Removing Outside Door Handle Seals

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release cable holder on carrier (1).

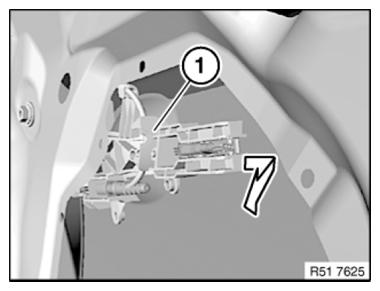

Remove inner carrier (1) in direction of arrow and feed out of door.

Fig 3: Removing Inner Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

If necessary, release cable connector (1).

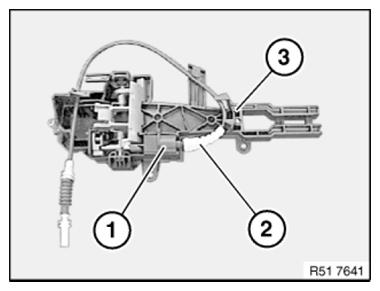

Feed Bowden cable (2) out of carrier (3).

Fig 4: Identifying Cable Connector, Bowden Cable And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
