51 11 185 Removing and installing/replacing side ornamental grille in bumper trim (to 03/2010)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

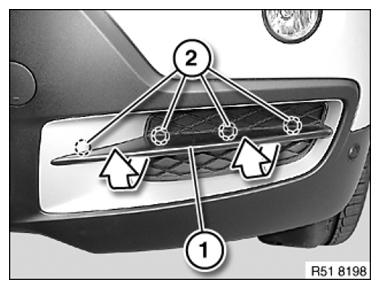

Detach side gill (1) in direction of arrow from latch mechanisms (2).

Fig 1: Disconnecting Side Gill From Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

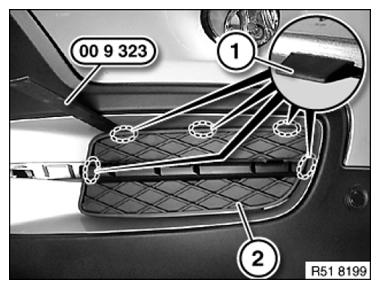

Push down latch mechanisms (1) with special tool 00 9 323 and remove ornamental grille (2) towards front.

Installation note:

Latch mechanisms (1) must not be damaged.

Fig 2: Removing Ornamental Grille Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.
