51 11 182 Removing and installing/replacing grille in bumper trim at top

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Pull grille (1) towards front and release from catches (2).

Installation:

Catches (2) must not be damaged.

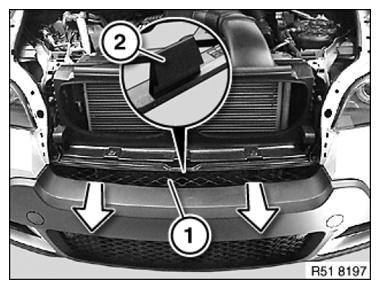

Fig 1: Pulling Grille From Catches

Courtesy of BMW OF NORTH AMERICA, INC.
