51 31 015 Repairing damage to windscreens caused by stone chips (clear and tinted laminated safety glass)
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

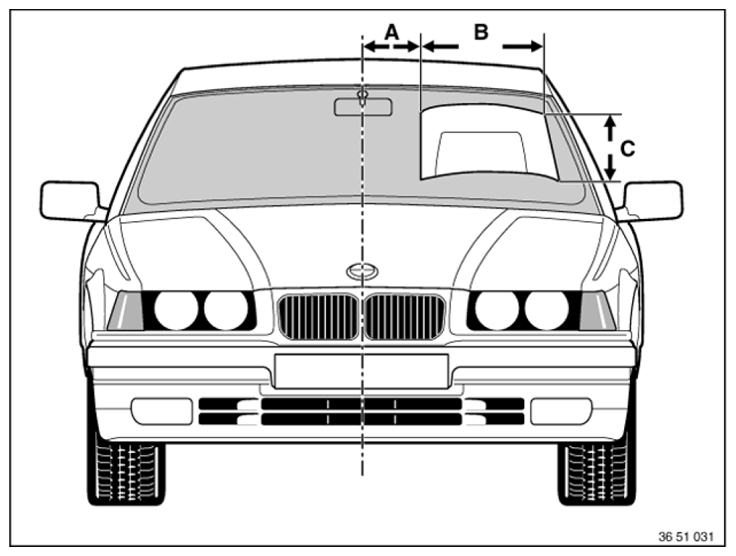

Field of vision (no repairs acceptable):
- 50 mm (gap between field of view / center of vehicle)
- Up to end of wiper range, outside (field of view width)
- Restriction by wiper range (height of field of view)
IMPORTANT:
Repairs must only be carried out outside of the field of vision (refer to sketch).
If the stone chip damage is outside the field of vision, refer to repair instruction.
If the stone chip damage is outside the field of vision, refer to repair instruction.
