51 47 172 Removing and installing/replacing flap in luggage compartment trim, left or right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

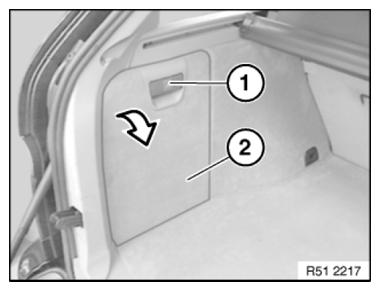

Open flap (2) at handle (1) and remove.

Fig 1: Opening Flap At Handle

Courtesy of BMW OF NORTH AMERICA, INC.

E70 Security Plus (SA109) only:

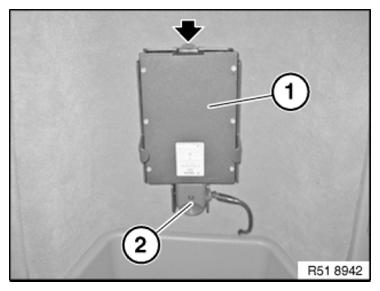

Release battery (1) for magnetic flashing beacon and remove in upward direction.

Feed plug connection (2) out of holder.

Fig 2: Identifying Battery And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
