51 47 128 Removing and installing (replacing) trim panel for luggage compartment floor, 3rd seat row

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Open luggage compartment floor and pull out towards rear.

Replacement

Release screws (1).

Remove HANDLE (2) ON TRIM PANEL FOR LUGGAGE COMPARTMENT FLOOR .

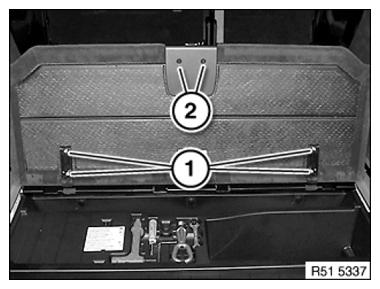

Fig 1: Identifying Luggage Compartment Floor Trim Panel Handle And Screws
G08529381Courtesy of BMW OF NORTH AMERICA, INC.
