64 22 191 Removing and installing/replacing rear compartment fresh air grille
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove insert in center console at rear bottom. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING REAR INSERT (IN STORAGE COMPARTMENT) .

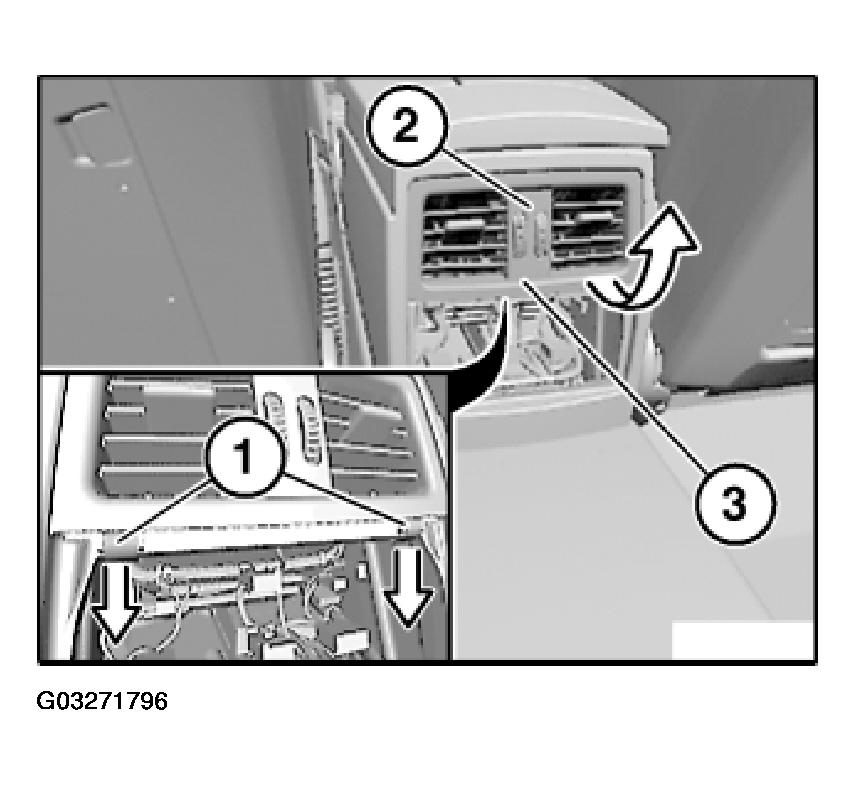

Detach clips (1) in direction of arrow.
Remove rear compartment fresh-air grill (2) in direction of arrow and unlock plug connection (3) underneath.
Installation:
Make sure rear compartment fresh-air grill (2) and clips (1) are correctly seated.
