64 22 162 Removing and installing/replacing fresh-air grille center
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove decorative strip on instrument panel on right. Refer to 51 45 380 REMOVING AND INSTALLING (REPLACING) RIGHT DECORATIVE STRIP ON INSTRUMENT PANEL .

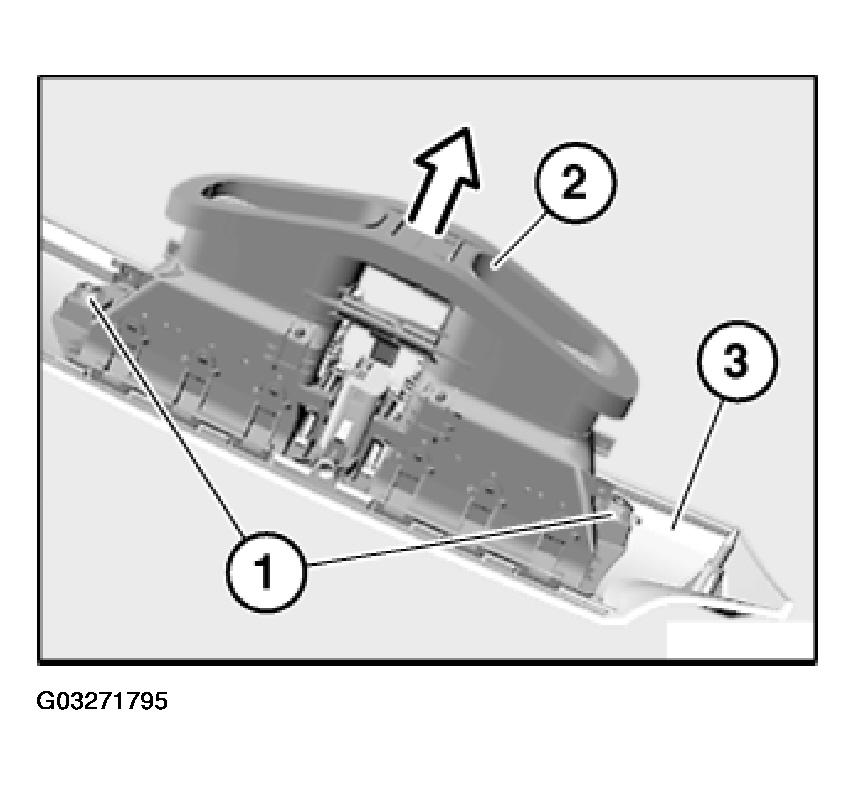

Release nuts (1) and remove center fresh-air grill (2) from decorative strip on instrument panel on right (3).
