Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove WHEEL .
Read and comply with GENERAL INFORMATION .

After completing work: BLEED BRAKING SYSTEM .

Press clutch pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Locating Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retaining clip (1) in direction of arrow.

Installation:

Retaining clip must be felt and heard to snap into place.

IMPORTANT: Grip brake hose at square head (3) to prevent connecting piece from turning in retaining bracket.

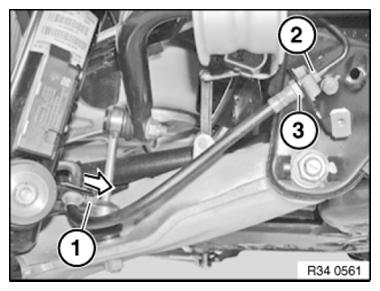

Fig 2: Disconnecting Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect brake hose from brake line (2).

Installation:

Tightening torque 34 32 1AZ .

Detach brake hose from brake caliper (1).

Installation:

Tightening torque 34 32 3AZ .

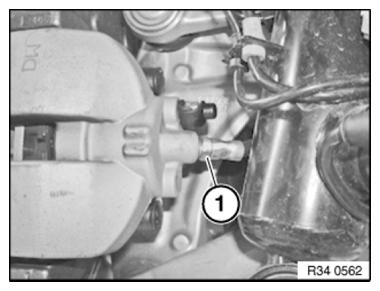

Fig 3: Identifying Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

NOTE: First tighten brake hose on brake caliper.
Insert brake hose in bracket and screw onto brake pipe.

Remove BRAKE PADS .

Release screws (1).

Remove brake anchor plate in direction of arrow.

Installation:

Tightening torque 34 21 2AZ .

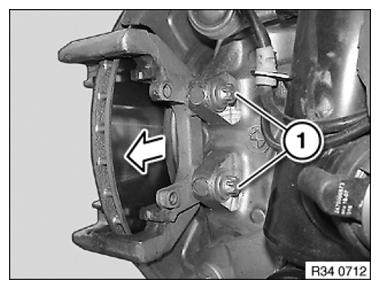

Fig 4: Removing Brake Anchor Plate

Courtesy of BMW OF NORTH AMERICA, INC.
