34 41 220 Removing and installing/renewing all parking brake pads

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 4 000

Installation note:

REMOVE rear brake disk.
Release electromechanical parking brake (EMF).

After completing repair work, ADJUST PARKING BRAKE .

NOTE: During replacement of the hand brake coverings, the following components must also be renewed:

Brake shoe expander
Adjusting screw
Spring set

Disconnect return springs (1) with brake spring pliers.

Installation note:

Return springs (1) must not be overelongated.

Check return springs (1) and replace if necessary.

Return springs (1) must not be mixed up.

Pay attention to installation position of adjusting screw (2).

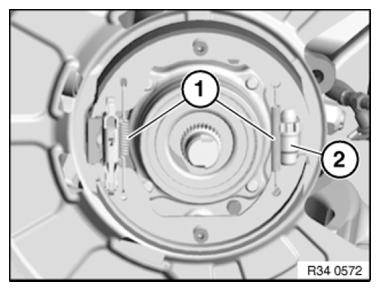

Fig 1: Identifying Return Springs And Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coat of grease to bush and screw threads, refer to BRAKES - OPERATING FLUIDS

NOTE: Graphic without wheel hub.

Twist roll pins (1) 90° with special tool 34 4 000 and detach.

Remove brake pads (2).

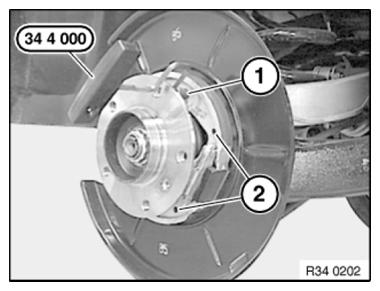

Fig 2: Removing Roll Pins And Brake Pads Using Special Tool (34 4 000)

Courtesy of BMW OF NORTH AMERICA, INC.
