Bowden cable, right

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Release union nut (1).

Installation:

Tightening torque 34 41 5AZ .

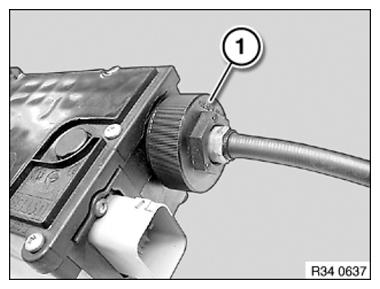

Fig 1: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Pull Bowden cable (1) out of actuator unit (2).

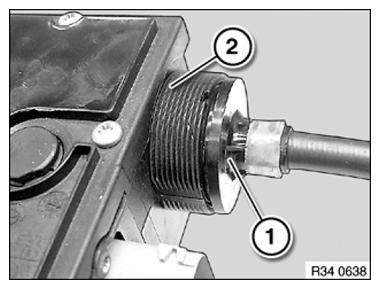

Fig 2: Identifying Bowden Cable And Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock locking sleeve (1) and pull out of housing a little.

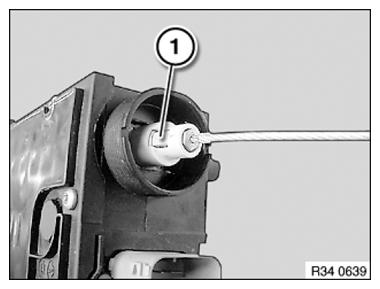

Fig 3: Identifying Locking Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out coupling (1) in direction of arrow.

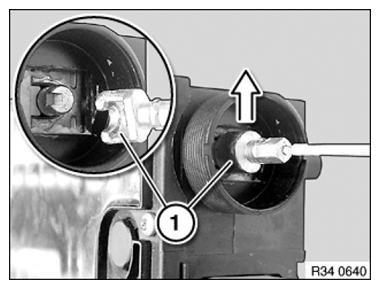

Fig 4: Removing Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out initial operation/function test in BMW diagnosis system.
- Path
  - Function selection
  - Service functions
  - Chassis
  - Parking brake
  - Initial operation/function test
