Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove brake guard plate (2).

Installation:

Tightening torque 34 11 3AZ .

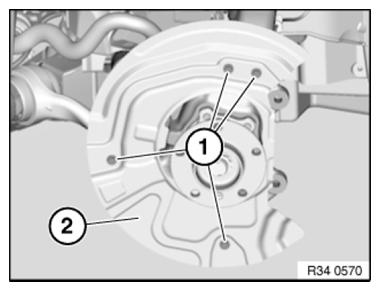

Fig 1: Identifying Screws And Brake Guard Plate
G08528092Courtesy of BMW OF NORTH AMERICA, INC.
