Bleeding rear axle brake circuit

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Connect vent hose with collecting vessel to vent valve on rear right brake caliper.

Close vent valve.

Run brake bleeding procedure with DIS with vent valve open.

After completing routine, press brake pedal 5 times to floor; clear and bubble-free brake fluid must flow out.

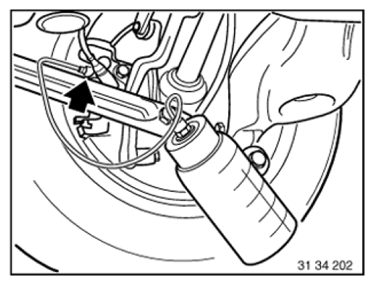

Fig 1: Locating Bleeder Valve On Rear Right Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Close vent valve.

Repeat procedure at rear left.
