34 32 951 Replacing rear left or right brake hose (between rear axle carrier and body)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 3 170

NOTE: Read and comply with GENERAL INFORMATION .
After completing work: BLEED BRAKING SYSTEM

Press clutch pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Locating Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square drive to prevent connecting piece from turning in retaining bracket.
Never twist brake hose (2) when installing it and avoid all contact with parts attached rigidly to the body.

Disconnect brake hose (2) from brake line (1).

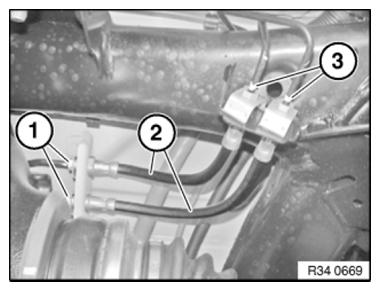

Fig 2: Identifying Brake Line And Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake line (3) and remove brake hose (2).

Installation:

Tightening torque 34 32 1AZ .

Installation:

Use torque wrench (Hazet 6282-1CT with reversible ratchet head).

Tighten brake line using torque wrench (1) and special tool 34 3 170 .

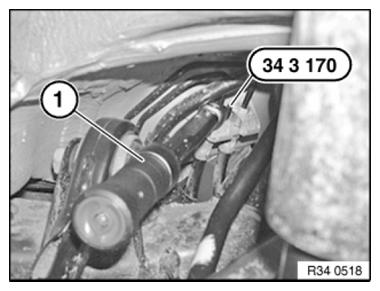

Fig 3: Tightening Brake Line Using Torque Wrench And Special Tool (34 3 170)

Courtesy of BMW OF NORTH AMERICA, INC.
